304L

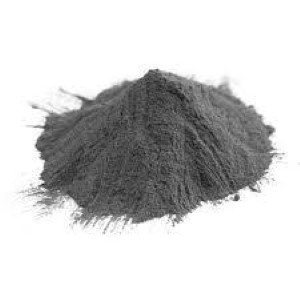

Stainless steel powder

Chromium – Nickel austenitic stainless steel with low Carbon content. The most used austenitic stainless steel in additive manufacturing.

It has excellent corrosion resistance, withstands corrosion from most oxidizing acids and very little magnetic response so it is generally considered as non-magnetic.

The powder is manufactured by Inert Gas Atomization (IGA) with highly spherical particles providing good flow rate and high packing density.

Other codes: EN 1.4306, JIS SUS304L, GOST 03X18H11, ISO X2CrNi19-11

Chemical Composition

Code	Cr	Ni	C	Si	Mn	P	S	Fe
304L	18.0-20.0	8.0-12.0	0.03	≤1.0	≤2.0	≤0.045	≤0.03	bal.

Physical properties

Code 304L	Apparent density g/cm3		Tap density g/cm3		Flow rate Φ 2.5 mm s/50g		D10		D50		D90
Particle size	Standard	Typical	Standard	Typical	Standard	Typical	Standard	Typical	Standard	Typical	Standard	Typical
15-45 μm	≥3.9	4.26	4.4-4.9	4.72	≤ 25	16.86	16-20	17.66	27-32	29.86	47-51	49.49
15-53 μm	≥3.9	4.32	4.4-4.9	4.83	≤ 25	16.21	17-22	18.49	30-34	31.73	50-58	53.68

Data for other particle sizes upon a request.

Mechanical properties

Code	Tensile strength MPa	Yield strength MPa	Elongation %
304L	505 +/- 50	166 +/- 50	56 +/- 5

Applications

Primary Applications

3D printing
Powder metallurgy
Metal Injection Molding
Hot isostatic pressing

Industry sectors

Chemical industry
Food processing
Medical devices and instruments
Aerospace
Automotive

Packaging

Iron buckets, barrels, aluminium foils
